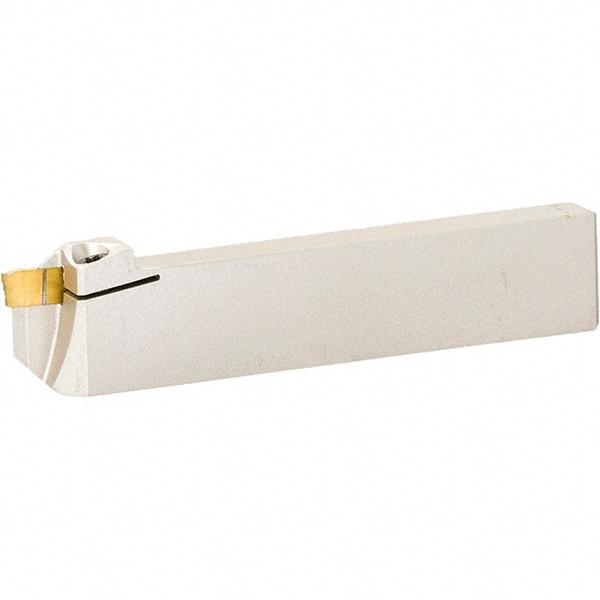

Iscar - External Thread, 0.3543" Max Depth of Cut, 1mm Min Groove Width, 100mm OAL, Right Hand Indexable Grooving Cutoff Toolholder - 20mm Shank Height x 9mm Shank Width, DG.. Insert Style, DGT Toolholder Style, Series Do-Grip
Item #: 45376365
Brand: Iscar
Model #: 2301572
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 9.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3543 |
| Minimum Groove Width (Decimal Inch) | 0.0394 |
| Minimum Groove Width (mm) | 1.00 |
| Maximum Groove Width (Decimal Inch) | 0.0590 |
| Maximum Groove Width (mm) | 1.50 |
| Overall Length (Decimal Inch) | 3.9370 |
| Overall Length (mm) | 100.00 |
| Series | Do-Grip |
| Toolholder Style | DGT |
| Insert Compatibility | DG.. |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7874 |
| Shank Width/Diameter (mm) | 9.00 |
| Shank Width/Diameter (Decimal Inch) | 0.3543 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.3300 |
| Head Height (mm) | 23.70 |
| Head Height (Decimal Inch) | 0.9331 |
| Head Length (mm) | 19.00 |
| Head Length (Decimal Inch) | 0.7480 |
| Shank Length (Decimal Inch) | 3.1890 |
| Shank Length (mm) | 81.00 |
| Complete Insert Compatibility | DGN-P; DGN/DGNM-J/JS/JT; DGR/L-J/JS; DGR/L-P |
