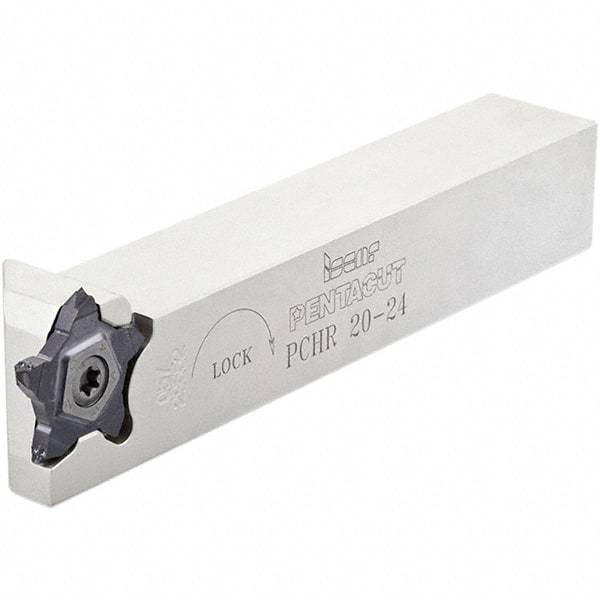

Iscar - External Thread, 0.256" Max Depth of Cut, 6.25mm Min Groove Width, 135mm OAL, Right Hand Indexable Grooving Cutoff Toolholder - 25mm Shank Height x 25mm Shank Width, PCH Toolholder Style, Series PentaCut
Item #: 45376308
Brand: Iscar
Model #: 2301810
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 6.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.2560 |
| Minimum Groove Width (Decimal Inch) | 0.2460 |
| Minimum Groove Width (mm) | 6.25 |
| Maximum Groove Width (mm) | 8.20 |
| Overall Length (mm) | 135.00 |
| Series | PentaCut |
| Toolholder Style | PCH |
| Shank Height (mm) | 25.00 |
| Shank Width/Diameter (mm) | 25.00 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.8900 |
| Head Length (mm) | 19.50 |
| Shank Length (mm) | 115.50 |
