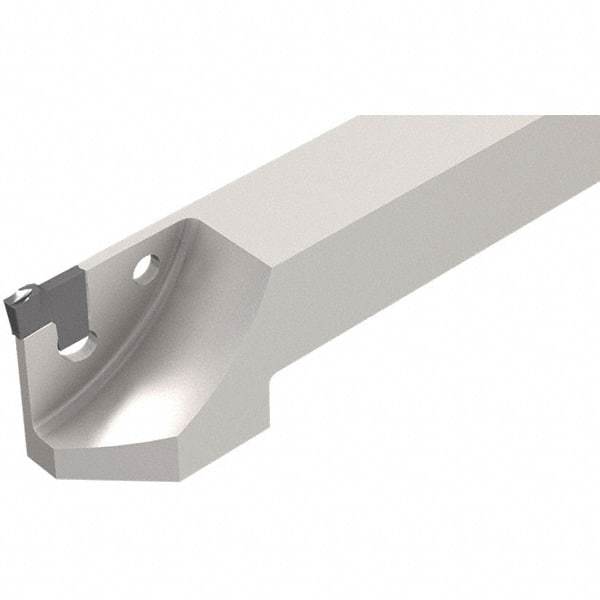

Iscar - External Thread, 0.689" Max Depth of Cut, 1.8mm Min Groove Width, 125mm OAL, Left Hand Indexable Grooving Cutoff Toolholder - 20mm Shank Height x 12mm Shank Width, TAG Insert Style, TGT Toolholder Style, Series Tang-Grip
Item #: 45376233
Brand: Iscar
Model #: 2301899
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (mm) | 17.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.6890 |
| Minimum Groove Width (Decimal Inch) | 0.0710 |
| Minimum Groove Width (mm) | 1.80 |
| Maximum Groove Width (mm) | 2.40 |
| Overall Length (Decimal Inch) | 4.9213 |
| Overall Length (mm) | 125.00 |
| Series | Tang-Grip |
| Toolholder Style | TGT |
| Insert Compatibility | TAG |
| Shank Height (mm) | 20.00 |
| Shank Width/Diameter (mm) | 12.00 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Clamp |
| Head Height (mm) | 20.00 |
| Complete Insert Compatibility | TAG N-A; TAG N-C/W/M; TAG N-J/JS/JT; TAG N-LF; TAG N-UT; TAG R/L-C; TAG R/L-J/JS |
