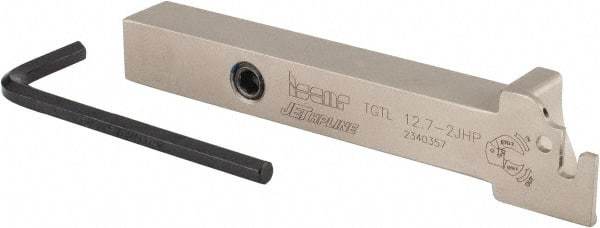

Iscar - External Thread, 0.63" Max Depth of Cut, 1.8mm Min Groove Width, 100mm OAL, Left Hand Indexable Grooving Cutoff Toolholder - 1/2" Shank Height x 1/2" Shank Width, TAG Insert Style, TGT Toolholder Style, Series Tang-Grip
Item #: 45375854
Brand: Iscar
Model #: 2302399
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (mm) | 16.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.6300 |
| Minimum Groove Width (Decimal Inch) | 0.0710 |
| Minimum Groove Width (mm) | 1.80 |
| Maximum Groove Width (Decimal Inch) | 0.0984 |
| Maximum Groove Width (mm) | 2.50 |
| Overall Length (Decimal Inch) | 3.9370 |
| Overall Length (mm) | 100.00 |
| Series | Tang-Grip |
| Toolholder Style | TGT |
| Insert Compatibility | TAG |
| Shank Height (Decimal Inch) | 0.5000 |
| Shank Width/Diameter (Inch) | 1/2 |
| Shank Width/Diameter (Decimal Inch) | 0.5000 |
| Through Coolant | Through Coolant |
| Insert Holding Method | Clamp |
| Head Height (Decimal Inch) | 0.8000 |
| Head Length (Decimal Inch) | 0.7300 |
| Shank Length (Decimal Inch) | 3.2100 |
| Complete Insert Compatibility | TAG N-A; TAG N-C/W/M; TAG N-J/JS/JT; TAG N-LF; TAG N-UT; TAG R/L-C; TAG R/L-J/JS |
