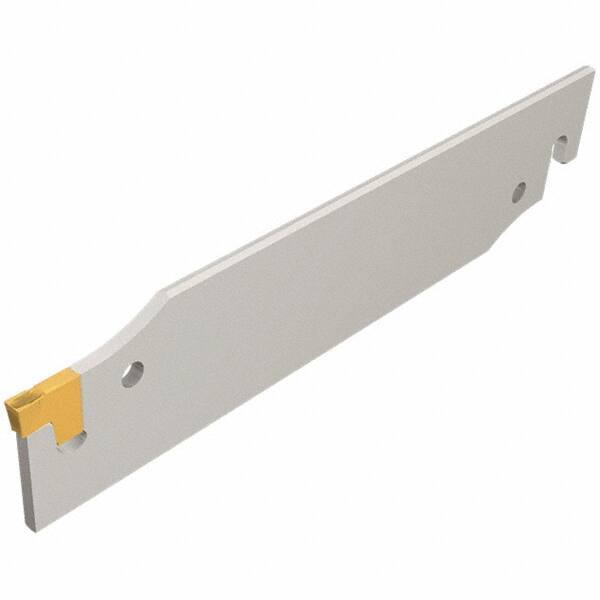

Iscar - External Thread, 1.2795" Max Depth of Cut, 1.65mm Min Groove Width, 125mm OAL, Left Hand Indexable Grooving Cutoff Toolholder - 20mm Shank Height x 20mm Shank Width, TAG Insert Style, TGT Toolholder Style, Series Tang-Grip
Item #: 45375672
Brand: Iscar
Model #: 2302443
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (mm) | 32.50 |
| Maximum Depth of Cut (Decimal Inch) | 1.2795 |
| Minimum Groove Width (Decimal Inch) | 0.0650 |
| Minimum Groove Width (mm) | 1.65 |
| Maximum Groove Width (mm) | 2.40 |
| Overall Length (Decimal Inch) | 4.9213 |
| Overall Length (mm) | 125.00 |
| Series | Tang-Grip |
| Toolholder Style | TGT |
| Insert Compatibility | TAG |
| Shank Height (mm) | 20.00 |
| Shank Width/Diameter (mm) | 20.00 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.7600 |
| Head Length (mm) | 40.00 |
| Shank Length (mm) | 85.00 |
| Complete Insert Compatibility | TAG N-A; TAG N-C/W/M; TAG N-J/JS/JT; TAG N-LF; TAG N-UT; TAG R/L-C; TAG R/L-J/JS |
