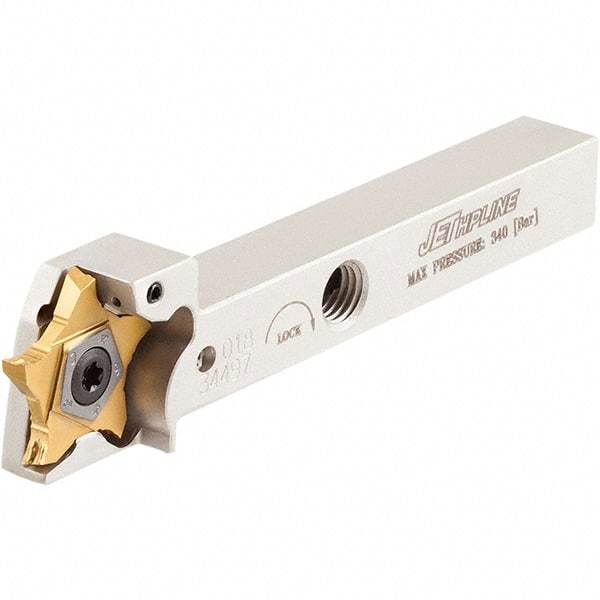

Iscar - External Thread, 0.256" Max Depth of Cut, 0.5mm Min Groove Width, 5.315" OAL, Right Hand Indexable Grooving Cutoff Toolholder - 1" Shank Height x 1" Shank Width, C#-ASH../PENTA 24.. Insert Style, PCH Toolholder Style, Series PentaCut
Item #: 45375565
Brand: Iscar
Model #: 2302455
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 6.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.2560 |
| Minimum Groove Width (Decimal Inch) | 0.0197 |
| Minimum Groove Width (mm) | 0.50 |
| Maximum Groove Width (Decimal Inch) | 0.1260 |
| Overall Length (Decimal Inch) | 5.3150 |
| Series | PentaCut |
| Toolholder Style | PCH |
| Insert Compatibility | C#-ASH..; PENTA 24.. |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Screw |
| Full Radius Insert | Yes |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.7500 |
| Head Length (Decimal Inch) | 0.9600 |
| Shank Length (Decimal Inch) | 4.3600 |
| Complete Insert Compatibility | C#-ASHR/L; PENTA 24N-J; PENTA 24N-J (Full Radius); PENTA 24N-PF; PENTA 24N-Z; PENTA 24R/L-J; PENTA 24R/L-Z |
