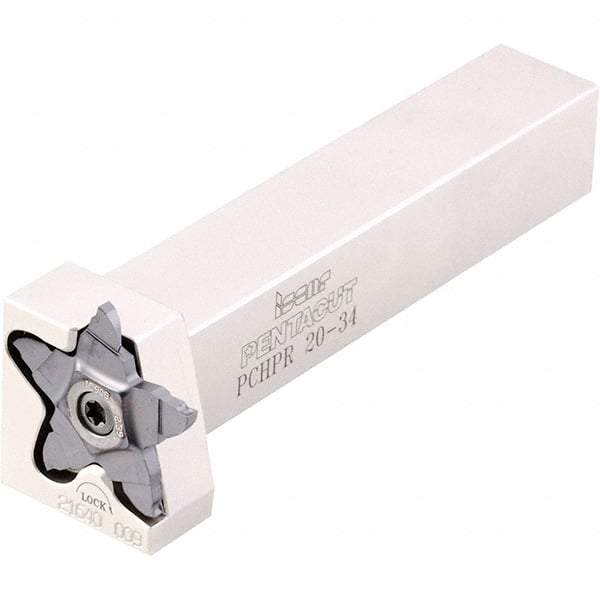

Iscar - External Thread, 0.3937" Max Depth of Cut, 3.19mm Min Groove Width, 135mm OAL, Right Hand Indexable Grooving Cutoff Toolholder - 25mm Shank Height x 25mm Shank Width, PENTA 34.. Insert Style, PCH Toolholder Style, Series PentaCut
Item #: 45375086
Brand: Iscar
Model #: 2302433
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Minimum Groove Width (Decimal Inch) | 0.1256 |
| Minimum Groove Width (mm) | 3.19 |
| Maximum Groove Width (Decimal Inch) | 0.3228 |
| Maximum Groove Width (mm) | 8.20 |
| Overall Length (Decimal Inch) | 5.3150 |
| Overall Length (mm) | 135.00 |
| Series | PentaCut |
| Toolholder Style | PCH |
| Insert Compatibility | PENTA 34.. |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Shank Width/Diameter (mm) | 25.00 |
| Shank Width/Diameter (Decimal Inch) | 0.9843 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Screw |
| Full Radius Insert | No |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.8858 |
| Complete Insert Compatibility | PENTA 34F239-0.15-22L; PENTA 34F239-0.15-22R; PENTA 34F247-0.20-22L; PENTA 34F247-0.20-22R; PENTA 34F300-0.40-22L; PENTA 34L150C08D; PENTA 34L150PB-6D; PENTA 34L200C06D; PENTA 34L200C15D; PENTA 34L200PB-6D; PENTA 34N150C015; PENTA 34N150PB015; PENTA 34N20 |
