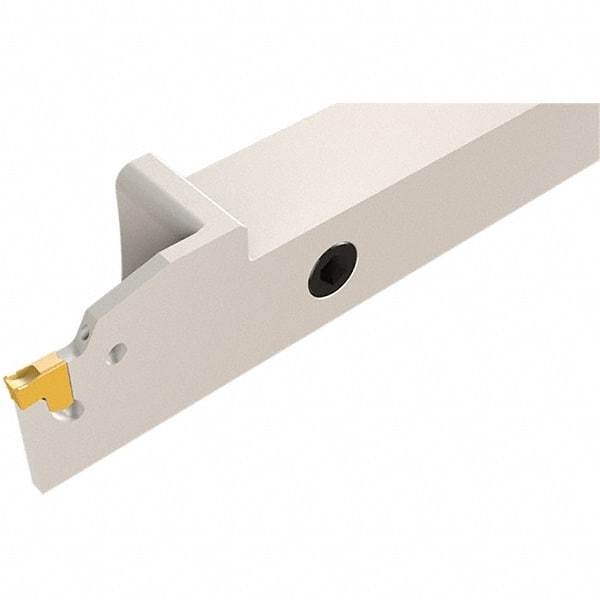

Iscar - External Thread, 0.4724" Max Depth of Cut, 1.8mm Min Groove Width, 119mm OAL, Right Hand Indexable Grooving Cutoff Toolholder - 10mm Shank Height x 10mm Shank Width, TAG Insert Style, TGT Toolholder Style, Series JetHPLine/Tang-Grip
Item #: 45375060
Brand: Iscar
Model #: 2302592
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 12.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.4724 |
| Minimum Groove Width (Decimal Inch) | 0.0709 |
| Minimum Groove Width (mm) | 1.80 |
| Maximum Groove Width (Decimal Inch) | 0.0984 |
| Maximum Groove Width (mm) | 2.50 |
| Overall Length (Decimal Inch) | 4.6850 |
| Overall Length (mm) | 119.00 |
| Series | JetHPLine; Tang-Grip |
| Toolholder Style | TGT |
| Insert Compatibility | TAG |
| Shank Height (mm) | 10.00 |
| Shank Height (Decimal Inch) | 0.3937 |
| Shank Width/Diameter (mm) | 10.00 |
| Shank Width/Diameter (Decimal Inch) | 0.3937 |
| Through Coolant | Through Coolant |
| Insert Holding Method | Clamp |
| Full Radius Insert | No |
| Head Height (mm) | 15.00 |
| Head Height (Decimal Inch) | 0.5906 |
| Complete Insert Compatibility | TAG L2C-6D; TAG L2J-15D; TAG L2J-6D; TAG L2JS-6D; TAG N2.4C; TAG N2C; TAG N2J; TAG N2JS; TAG N2JT; TAG N2UT; TAG R2.4C-8D; TAG R2C-6D; TAG R2J-6D; TAG R2JS-6D |
