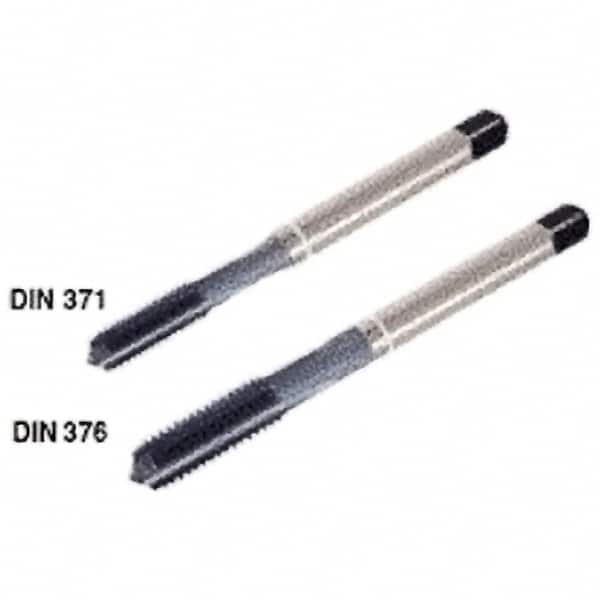

Iscar - M4x0.70 Metric Coarse 6HX 3 Flute High Speed Steel Straight Flute Machine Tap - Modified Bottoming, Right Hand Thread, 63mm OAL, 13mm Thread Length, Oversize
Item #: 45374279
Brand: Iscar
Model #: 4445189
Exact Tooling IR#: 04
Features and Benefits
Modified bottoming is similar to bottoming, but the chamfer is longer and has more teeth. They are used for threading blind holes and have 2 to 2-1/2 threads.
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
| Product Specifications | |
|---|---|
| Tap Type | Machine Tap |
| Thread Size (mm) | M4x0.70 |
| Class of Fit | 6HX |
| Number of Flutes | 3 |
| Chamfer | Modified Bottoming |
| Material | High Speed Steel |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | Metric Coarse |
| Overall Length (mm) | 63.00 |
| Oversize | No |
| Series/List | TP9 |
| Thread Length (mm) | 13.00 |
| Shank Diameter (mm) | 4.50 |
| Square Size (mm) | 3.40 |
| Material Application | Cast Iron |
