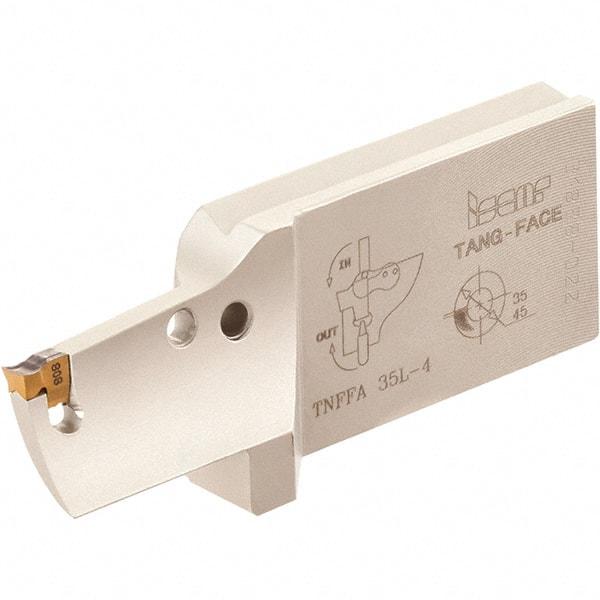

Iscar - 3" Groove Width, 19mm Max Depth of Cut, Left Hand Cut, TNFFA Indexable Grooving Blade - TNF-M Insert Style, Series TangFace
Item #: 45373271
Brand: Iscar
Model #: 2302553
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Left Hand |
| Minimum Groove Width (mm) | 3.00 |
| Minimum Groove Width (Decimal Inch) | 0.1180 |
| Maximum Depth of Cut (mm) | 19.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.7480 |
| Blade Style | TNFFA |
| Series | TangFace |
| Minimum Workpiece Diameter (mm) | 30.00 |
| Minimum Workpiece Diameter (Decimal Inch) | 1.1811 |
| Maximum Workpiece Diameter (mm) | 35.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 1.3780 |
| Blade Height (mm) | 32.00 |
| Blade Height (Decimal Inch) | 1.2600 |
| Blade Width (mm) | 18.50 |
| Blade Width (Decimal Inch) | 0.7283 |
| Maximum Groove Width (mm) | 3.00 |
| Maximum Groove Width (Decimal Inch) | 0.1180 |
| Overall Length (mm) | 90.00 |
| Overall Length (Decimal Inch) | 3.5433 |
| Insert Style | TNF-M |
| Complete Insert Compatibility | TNF 3M |
