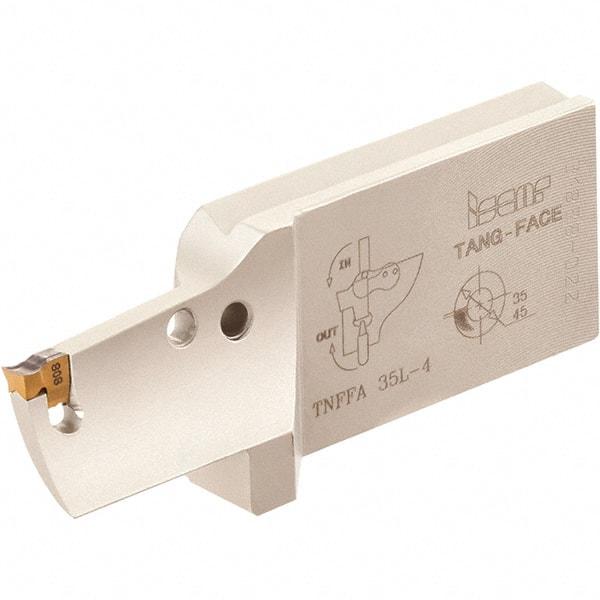

Iscar - 3" Groove Width, 18mm Max Depth of Cut, Left Hand Cut, TNFFH Indexable Grooving Blade - TNF-M, TNF-P Insert Style, Series TangFace
Item #: 45372877
Brand: Iscar
Model #: 2302510
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Left Hand |
| Minimum Groove Width (mm) | 3.00 |
| Minimum Groove Width (Decimal Inch) | 0.1180 |
| Maximum Depth of Cut (mm) | 18.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.7087 |
| Blade Style | TNFFH |
| Series | TangFace |
| Minimum Workpiece Diameter (mm) | 90.00 |
| Minimum Workpiece Diameter (Decimal Inch) | 3.5433 |
| Maximum Workpiece Diameter (mm) | 120.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 4.7244 |
| Blade Height (mm) | 32.00 |
| Blade Height (Decimal Inch) | 1.2600 |
| Blade Width (mm) | 5.20 |
| Blade Width (Decimal Inch) | 0.2047 |
| Maximum Groove Width (mm) | 3.00 |
| Maximum Groove Width (Decimal Inch) | 0.1180 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Insert Style | TNF-M; TNF-P |
| Complete Insert Compatibility | TNF 3M; TNF 4P |
