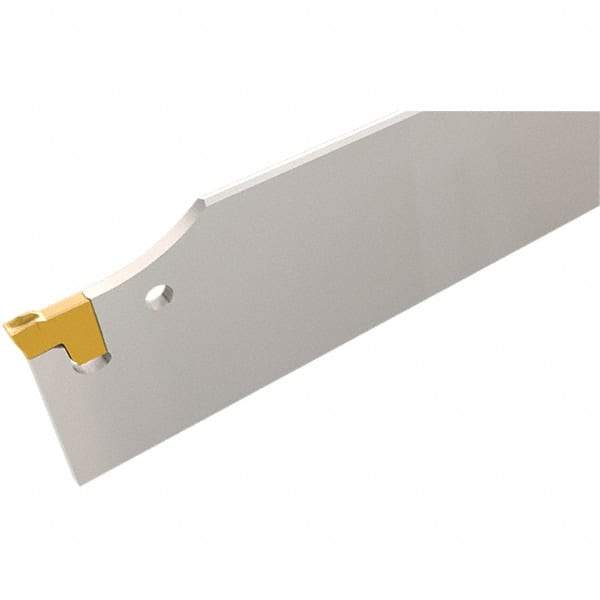

Iscar - 3-15/16" Blade Height, 8.2mm Blade Width, 460mm OAL, Neutral Cut, Single End Indexable Cut-Off Blade - TGFH Blade, Tang-Grip Series
Item #: 45371432
Brand: Iscar
Model #: 2302148
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Single or Double End | Single |
| Cutting Direction | Neutral |
| Blade Height (mm) | 100.00 |
| Blade Height (Decimal Inch) | 3.9370 |
| Blade Width (mm) | 8.20 |
| Blade Overall Length (mm) | 460.00 |
| Blade Style | TGFH |
| Insert Style | TAG N-C/W/M; TAGB/TAGBA |
| Insert Width (mm) | 8.70 |
| Insert Width (Decimal Inch) | 0.3425 |
| Series | Tang-Grip |
| Insert Seat Size | 8.2 |
| Insert Holding Method | Clamp |
| Maximum Workpiece Diameter (Decimal Inch) | 17.7200 |
| Cutting Height (mm) | 92.50 |
| Cutting Height (Decimal Inch) | 3.6417 |
| Minimum Insert Width (mm) | 8.70 |
| Minimum Insert Width (Decimal Inch) | 0.3425 |
| Maximum Insert Width (mm) | 10.00 |
| Maximum Insert Width (Decimal Inch) | 0.3937 |
| Complete Insert Compatibility | TAG N9.5C; TAG N9.5W; TAGB 1008Y; TAGB 1050Y |
| Complete Tool Block/Toolholder Style Compatibility | C..TBK..,HS..TBK..,IM..TBK..,SGT.. |
