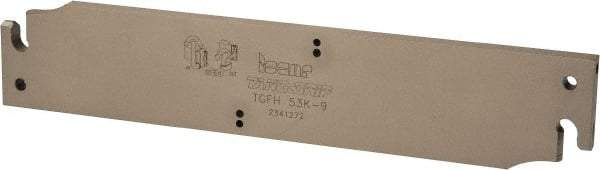

Iscar - 2.0709" Blade Height, 0.323" Blade Width, 10.236" OAL, Neutral Cut, Single End Indexable Cut-Off Blade - TGFH Blade, Tang-Grip Series
Item #: 45371374
Brand: Iscar
Model #: 2302181
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Single or Double End | Single |
| Cutting Direction | Neutral |
| Blade Height (mm) | 52.60 |
| Blade Height (Decimal Inch) | 2.0709 |
| Blade Width (mm) | 8.20 |
| Blade Width (Decimal Inch) | 0.3230 |
| Blade Overall Length (mm) | 260.00 |
| Blade Overall Length (Decimal Inch) | 10.2360 |
| Blade Style | TGFH |
| Insert Style | TAG 9.. |
| Insert Width (mm) | 8.70 |
| Insert Width (Decimal Inch) | 0.3425 |
| Series | Tang-Grip |
| Insert Seat Size | 8.2 |
| Insert Holding Method | Clamp |
| Maximum Workpiece Diameter (Decimal Inch) | 8.4600 |
| Cutting Height (mm) | 45.20 |
| Cutting Height (Decimal Inch) | 1.7795 |
| Minimum Insert Width (mm) | 8.70 |
| Minimum Insert Width (Decimal Inch) | 0.3425 |
| Maximum Insert Width (mm) | 10.00 |
| Maximum Insert Width (Decimal Inch) | 0.3937 |
| Complete Insert Compatibility | TAG N12.7W; TAGB 1208Y; TAGB 1260H; TAGB 1260Y |
| Complete Tool Block/Toolholder Style Compatibility | SGTBK 38-9; SGTBK 40-9; SGTBK 50-9; SGTBU 40-9; SGTBU 50-9 |
| Manufacturers Catalog Number | TGFH 53K-9 |
