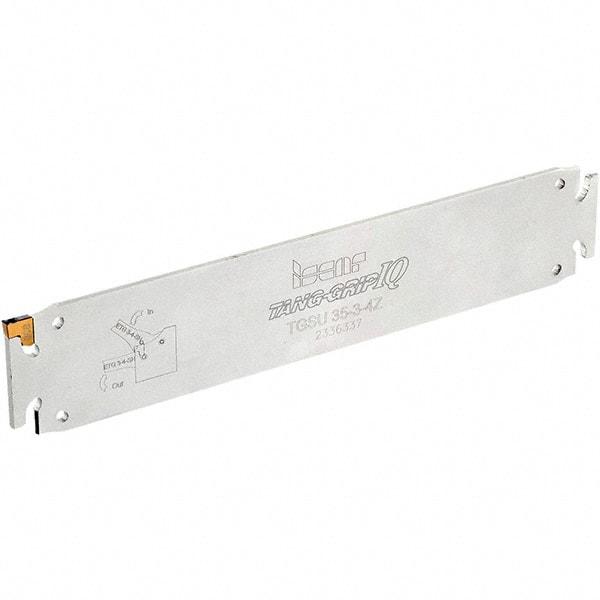

Iscar - 1.378" Blade Height, 8.2mm Blade Width, 180mm OAL, Neutral Cut, Single End Indexable Cut-Off Blade - TGSU Blade, Tang-GripIQ Series
Item #: 45371325
Brand: Iscar
Model #: 2302251
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Single or Double End | Single |
| Cutting Direction | Neutral |
| Blade Height (mm) | 35.00 |
| Blade Height (Decimal Inch) | 1.3780 |
| Blade Width (mm) | 8.20 |
| Blade Overall Length (mm) | 180.00 |
| Blade Style | TGSU |
| Insert Style | TAG N-C/W/M; TAGB/TAGBA |
| Insert Width (mm) | 8.70 |
| Insert Width (Decimal Inch) | 0.3425 |
| Series | Tang-GripIQ |
| Insert Seat Size | 8.2 |
| Tool Block/Toolholder Style | TGTBU |
| Insert Holding Method | Clamp |
| Maximum Workpiece Diameter (Decimal Inch) | 5.6700 |
| Cutting Height (mm) | 33.20 |
| Cutting Height (Decimal Inch) | 1.3070 |
| Minimum Insert Width (mm) | 8.70 |
| Minimum Insert Width (Decimal Inch) | 0.3425 |
| Maximum Insert Width (mm) | 10.00 |
| Maximum Insert Width (Decimal Inch) | 0.3937 |
| Complete Insert Compatibility | TAG N9.5C; TAG N9.5W; TAGB 1008Y; TAGB 1050Y |
| Complete Tool Block/Toolholder Style Compatibility | TGTBU 20-35; TGTBU 25-35; TGTBU 32-35; TGTBU 32-35 HD; TGTBU 40-35 |
