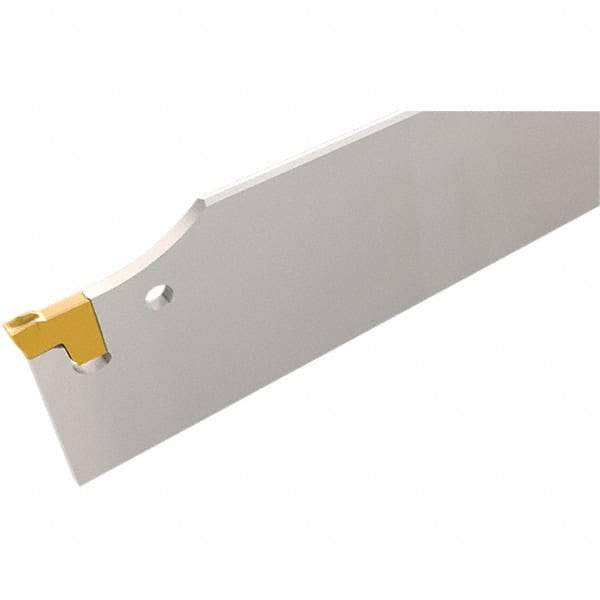

Iscar - 2.0709" Blade Height, 10mm Blade Width, 260mm OAL, Left Hand Cut, Single End Indexable Cut-Off Blade - TGFH Blade, Tang-Grip Series
Item #: 45371275
Brand: Iscar
Model #: 2302295
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Single or Double End | Single |
| Cutting Direction | Left Hand |
| Blade Height (mm) | 52.60 |
| Blade Height (Decimal Inch) | 2.0709 |
| Blade Width (mm) | 10.00 |
| Blade Overall Length (mm) | 260.00 |
| Blade Style | TGFH |
| Insert Style | TAG N-C/W/M; TAGB/TAGBA |
| Insert Width (mm) | 11.70 |
| Insert Width (Decimal Inch) | 0.4606 |
| Series | Tang-Grip |
| Insert Seat Size | 10 |
| Insert Holding Method | Clamp |
| Maximum Workpiece Diameter (Decimal Inch) | 8.4600 |
| Cutting Height (mm) | 45.20 |
| Cutting Height (Decimal Inch) | 1.7795 |
| Minimum Insert Width (mm) | 11.70 |
| Minimum Insert Width (Decimal Inch) | 0.4606 |
| Maximum Insert Width (mm) | 12.70 |
| Maximum Insert Width (Decimal Inch) | 0.5000 |
| Complete Insert Compatibility | TAG N12.7W; TAGB 1208Y; TAGB 1260H; TAGB 1260Y |
| Complete Tool Block/Toolholder Style Compatibility | C..TBK..,HS..TBK..,IM..TBK..,SGT.. |
