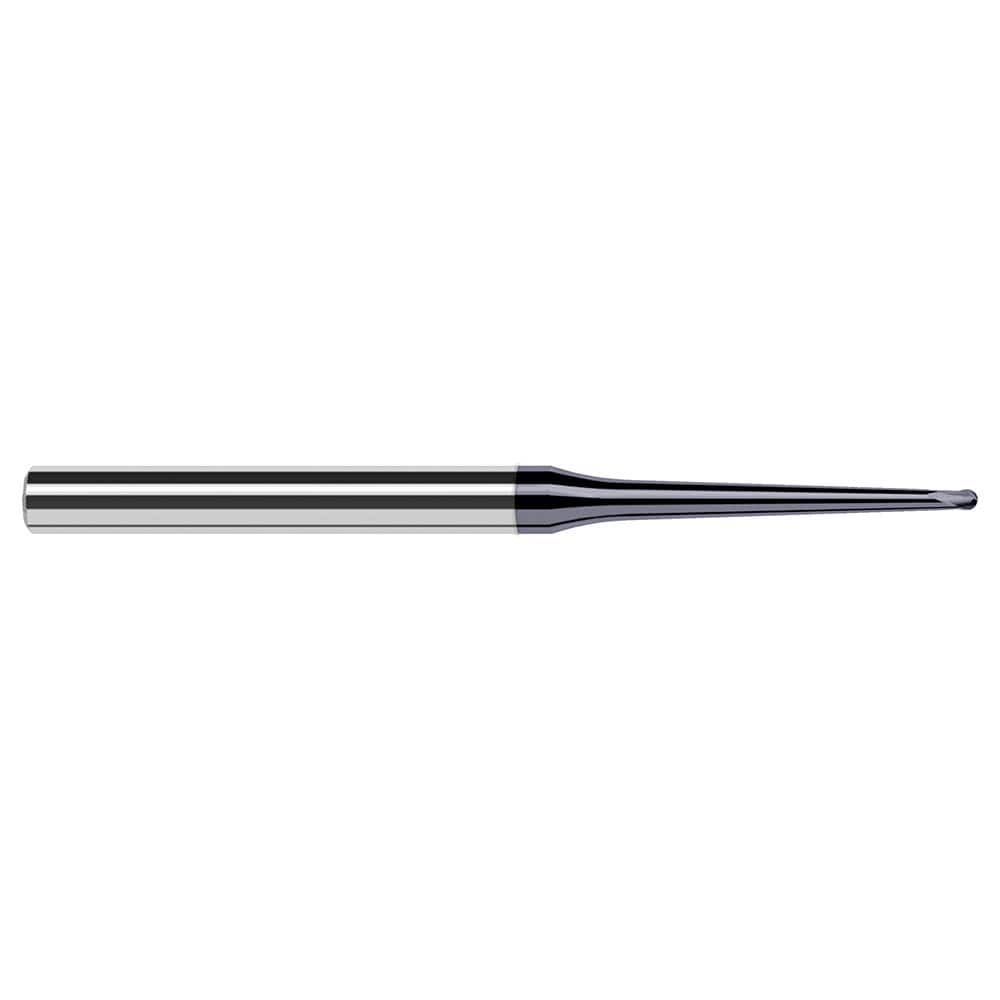

Ball End Mill: 0.031″ Dia, 0.025″ LOC, 2 Flute, Solid Carbide 2-1/2″ OAL, 1/4″ Shank Dia, 20 ° Helix, AlTiN Coated, Single End
Item #: 45338316
Brand: Harvey Tool
Model #: 998706-C6
Product Specifications
| Mill Diameter (Inch) | 1/32 |
| Mill Diameter (Decimal Inch) | 0.0310 |
| Mill Diameter (mm) | 0.80 |
| End Mill Material | Solid Carbide |
| Helix Angle | 20 |
| Length Of Cut Range (Decimal Inch) | 0.0000 to 0.0500 |
| Variable Helix | No |
| Shank Diameter (Inch) | 1/4 |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Reach Length (Decimal Inch) | 0.8170 |
| Overall Length (Inch) | 2-1/2 |
| Overall Length (Decimal Inch) | 2.5000 |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Centercutting | Yes |
| Single Or Double End | Single |
| Number Of Flutes | 2 |
| Coating/Finish | AlTiN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.0250 |
