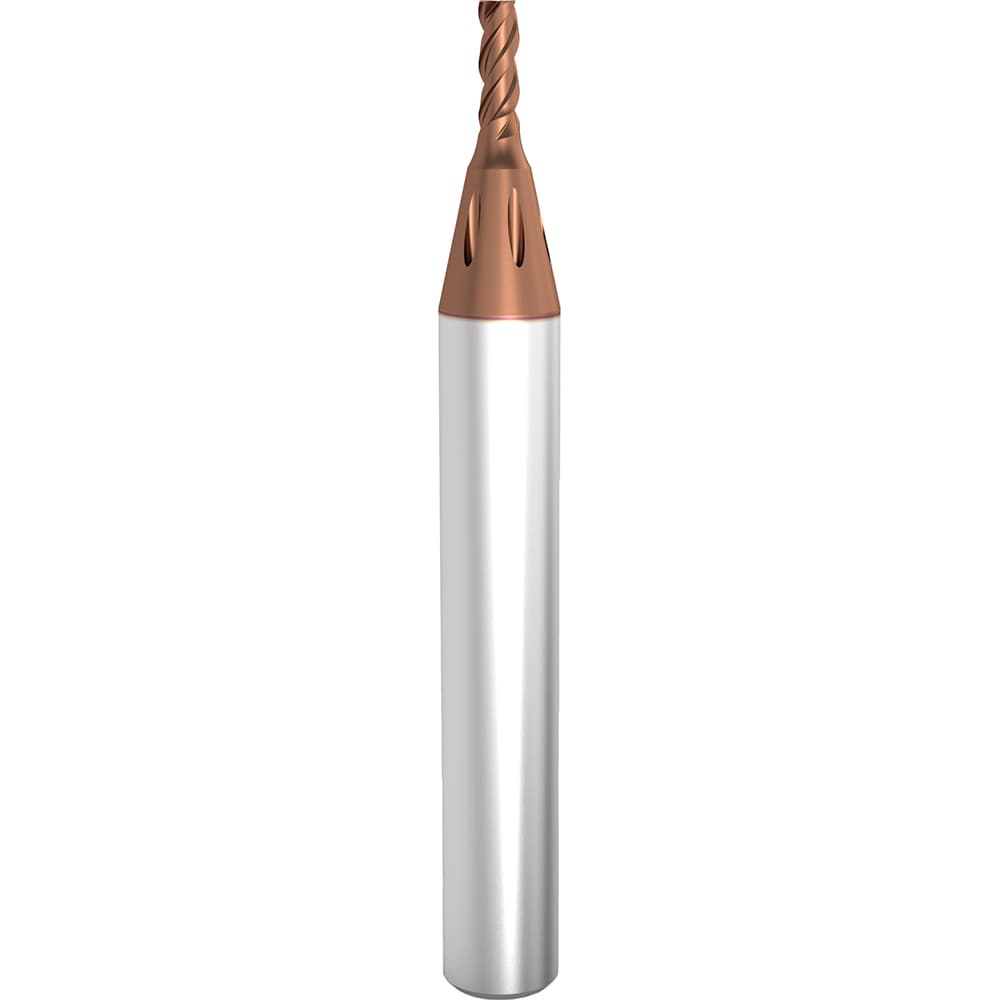

Corner Chamfer End Mill: 3/32" Dia, 5.95 mm LOC, 3 Flute, Solid Carbide
Item #: 20185047
Brand: Guhring
Model #: 9068080023800
Product Specifications
| Mill Diameter (Inch) | 3/32 |
| Mill Diameter (Decimal Inch) | 0.0938 |
| Mill Diameter (mm) | 2.38 |
| Number Of Flutes | 3 |
| Length of Cut (mm) | 5.95 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | Durox |
| Overall Length (Inch) | 2 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Variable Index | No |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Overall Length (mm) | 50.80 |
| Coolant Through | Yes |
| Pitch | Coarse |
| Overall Length (Decimal Inch) | 2.0000 |
| Chipbreaker | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.2340 |
| Length Type | Standard |
| Flute Type | Helical |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (mm) | 6.00 |
| Reach Length (mm) | 15.00 |
| Mill Diameter Tolerance | h8 |
| Shank Diameter Tolerance | h5 |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | P; S; K; M; N |
| Secondary Workpiece Material | Hard Material |
| Secondary Workpiece Material Code | H |
| Material Grade | Ultra Fine Grain |
| Series | 6808 |
| For Use With. | End Mill Holders |
| Helix Style | High |
| Manufacturers Catalog Number | 9068080023800 |
