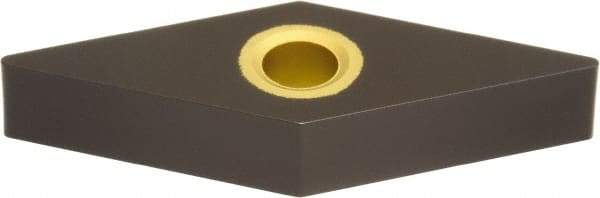

Sumitomo - VNMA333 Grade AC700G Carbide Turning Insert - TiC Finish, 35° Diamond, 3/8" Inscr Circle, 3/16" Thick, 3/64" Corner Radius
Item #: 45225232
Brand: Sumitomo
Model #: 19DY295
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | VNMA |
| Insert Size | 333 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Manufacturer's Grade | AC700G |
| Coating | TiC |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Relief Angle | 0 |
| Coating Process | CVD |
| Included Angle | 35 |
| Insert Holding Method | Pin & Clamp |
| Shape | Diamond |
