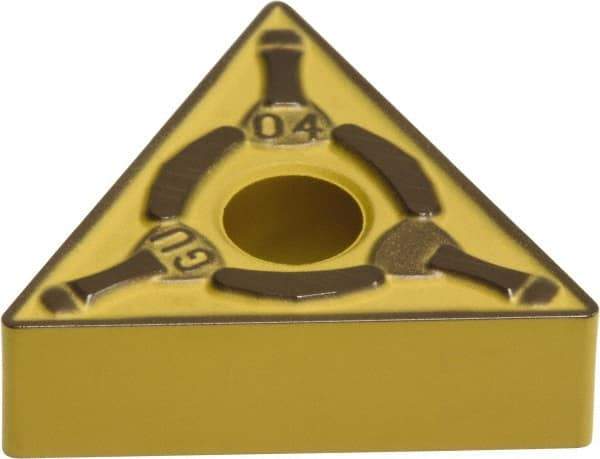

Sumitomo - TNMG432 EGU Grade AC630M Carbide Turning Insert - Al2O3 Finish, 60° Triangle, 1/2" Inscr Circle, 3/16" Thick, 1/32" Corner Radius
Item #: 45221702
Brand: Sumitomo
Model #: 19PW272
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TNMG |
| Insert Size | 432 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | AC630M |
| Coating | Al2O3 |
| Chip Breaker | EGU |
| Hole Diameter (Decimal Inch) | 0.2031 |
| Rake | Positive |
| Rake Angle | 7 |
| Relief Angle | 0 |
| Coating Process | CVD |
| Included Angle | 60 |
| Insert Holding Method | Pin & Clamp |
| Shape | Triangle |
