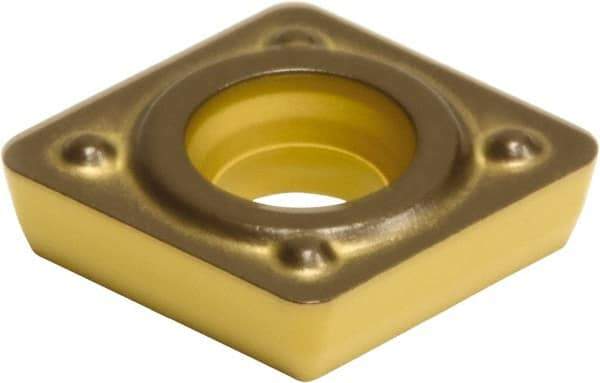

Sumitomo - CPMT21.51 ENS Grade AC630M Carbide Turning Insert - Al2O3 Finish, 80° Diamond, 1/4" Inscr Circle, 3/32" Thick, 1/64" Corner Radius
Item #: 45200730
Brand: Sumitomo
Model #: 1APW530
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CPMT |
| Insert Size | 21.51 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | AC630M |
| Coating | Al2O3 |
| Chip Breaker | ENS |
| Hole Diameter (Decimal Inch) | 0.1100 |
| Rake | Positive |
| Rake Angle | 10 |
| Relief Angle | 11 |
| Coating Process | CVD |
| Included Angle | 80 |
| Insert Holding Method | Screw |
| Shape | Diamond |
