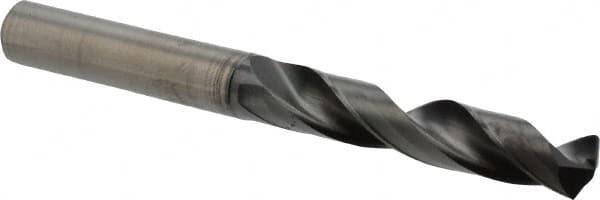

Mechanics Drill Bit: 23/64″ Dia, 135 ™, Solid Carbide TiAlCr/TiSi Finish, 3.8583″ OAL, Series MDW-GS4
Item #: 45168002
Brand: Sumitomo
Model #: U101137
Product Specifications
| Drill Bit Size (Inch) | 23/64 |
| Drill Bit Size (Decimal Inch) | 0.3594 |
| Drill Bit Size (mm) | 9.13 |
| Drill Point Angle | 135 |
| Tool Material | Solid Carbide |
| Series | MDW-GS4 |
| Drill Length Type | Mechanics |
| Web Configuration | Tapered |
| Tool Performance | High Performance |
| Number Of Pieces | 1 |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Shank Diameter (Decimal Inch) | 0.3594 |
| Overall Length (Decimal Inch) | 3.8583 |
| Flute Length (Decimal Inch) | 2.1654 |
| Coolant Through | No |
| Coating/Finish | TiAlCr/TiSi |
