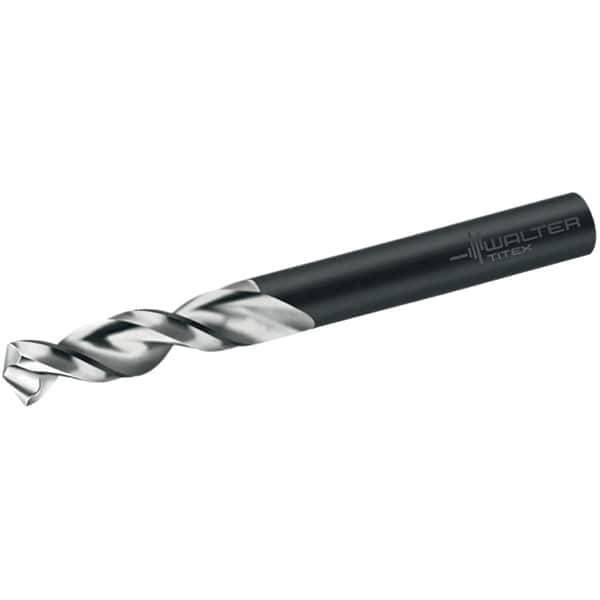

Walter-Titex - 47/64" 130° Parabolic Flute Cobalt Screw Machine Drill Bit - Bright/Oxide Finish, Right Hand Cut, 64mm Flute Length, 127mm OAL, Conical+U Point, Straight Shank
Item #: 45160231
Brand: Walter-Titex
Model #: 5154971
Exact Tooling IR#: 04
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Bright/Oxide provides a smooth, polished finish and prevents chip building, galling and welding on the workpiece. It increases chip flow and is commonly used on low-carbon metals, stainless steel and ferrous metals.
Parabolic flutes have a wider flute shape for increased chip flow.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.7344 |
| Drill Bit Size (Inch) | 47/64 |
| Drill Point Angle | 130 |
| Drill Bit Material | Cobalt |
| Drill Bit Finish/Coating | Bright/Oxide |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Flute Length (mm) | 64.00 |
| Flute Length (Decimal Inch) | 2.5197 |
| Overall Length (mm) | 127.00 |
| Overall Length (Decimal Inch) | 5.0000 |
| Flute Length x Diameter Ratio | 3xD |
| Point Type | Conical+U |
| Shank Diameter (mm) | 18.65 |
| Shank Diameter (Decimal Inch) | 0.7344 |
| Shank Diameter (Inch) | 47/64 |
| Specification Designation | DIN |
| Maximum Drilling Depth (mm) | 45.00 |
| Maximum Drilling Depth (Decimal Inch) | 1.7717 |
| Shank Length (mm) | 63.00 |
| Shank Length (Decimal Inch) | 2.4803 |
| Threaded Shank | No |
| Number of Flutes | 2 |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (mm) | h8 |
| Drill Tip Finish/Coating | None |
| Specification Number | DIN 1897 |
| Web Thinning | Web-Thinned |
| Material Grade | M35 |
| Series/List | A1148 |
| Length Type | Stub |
