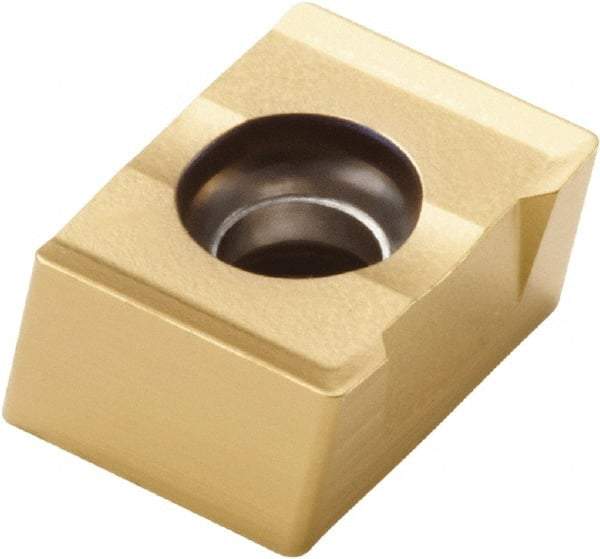

Seco - LNKT080520 E05 Grade H25 Carbide Milling Insert - Uncoated, 0.197" Thick, 0.079" Corner Radius
Item #: 45129186
Brand: Seco
Model #: 30534
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LNKT |
| Insert Size | 080520 |
| Material | Carbide |
| Material Grade | Micrograin |
| Manufacturer's Grade | H25 |
| Coating | Uncoated |
| Width (Decimal Inch) | 0.3070 |
| Length (Decimal Inch) | 0.3940 |
| Thickness (Decimal Inch) | 0.1970 |
| Corner Radius (Decimal Inch) | 0.0790 |
| Relief Angle | 0.000 |
| Rake Angle | 23 |
| Rake | Positive |
| Included Angle | 90 |
| Shape | Rectangle |
| Chipbreaker | E05 |
| ISO Number | LNKT 080520PPN-E05 |
