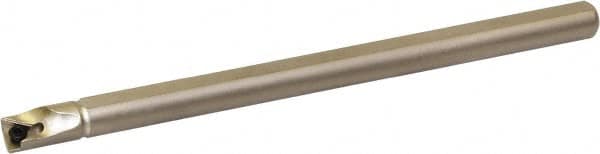

Kyocera - 0.312" Min Bore Diam, 4" OAL, 1/4" Shank Diam, A/S-STLB(P)-AE Indexable Boring Bar - 0.472" Max Bore Depth, TBGT 121.., TBGW 121.., TBMT 121.. Insert, Screw Holding Method
Item #: 45073343
Brand: Kyocera
Model #: 8826500
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A/S-STLB(P)-AE |
| Minimum Bore Diameter (Decimal Inch) | 0.3120 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (Decimal Inch) | 0.4720 |
| Overall Length (Inch) | 4 |
| Overall Length (Decimal Inch) | 4.0000 |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Insert Compatibility | TBGT 121..; TBGW 121..; TBMT 121.. |
| Through Coolant | No |
| Multi-Use Tool | Yes |
| Multi-Use Application | Internal Facing |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw |
| Rake | Negative |
| Lead Angle | 5 |
| Center to Cutting Edge (Decimal Inch) | 0.1500 |
| Insert Thickness (Inch) | 1/16 |
| Insert Thickness (Decimal Inch) | 0.0625 |
| Insert Inscribed Circle (Inch) | 5/32 |
| Insert Inscribed Circle (Decimal Inch) | 0.1563 |
| Rake Angle | -12 |
| Complete Insert Compatibility | TBGT 121013MR/L; TBGT 12101R/L; TBGT 12102M-CF; TBGT 12102MP-CF; TBGT 12102MR/L; TBGT 12102R/L; TBGT 12105CF; TBGT 12105M-CF; TBGT 12105MP-CF; TBGT 12105MR/L; TBGT 12105R/L; TBGT 1211MR/L; TBGT 1211R/L; TBGW 12105; TBGW 12105NE; TBGW 1211; TBGW 1211NE; TB |
| Toolholder Material | Steel |
