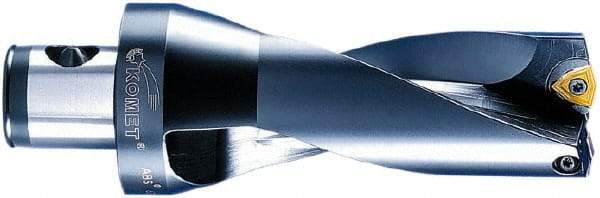

Komet - 147mm Max Drill Depth, 3xD, 49mm Diam, Indexable Insert Drill - 2 Inserts, ABS 63 Modular Connection Shank
Item #: 44871440
Brand: Komet
Model #: V1374900
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | V13 |
| Drill Diameter (mm) | 49.00 |
| Drill Diameter (Decimal Inch) | 1.9291 |
| Maximum Drill Depth (mm) | 147.00 |
| Maximum Drill Depth (Decimal Inch) | 5.7874 |
| Shank Type | Modular Connection |
| Modular Connection Size | ABS 63 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 2.0472 |
| Maximum Drill Diameter (mm) | 52.00 |
| Overall Length/Projection (mm) | 202.00 |
| Overall Length/Projection (Decimal Inch) | 7.9528 |
| Insert Compatibility | WOEX 080404 |
| Body Length (Decimal Inch) | 7.9528 |
| Body Length (mm) | 202.00 |
| Series | KUB |
