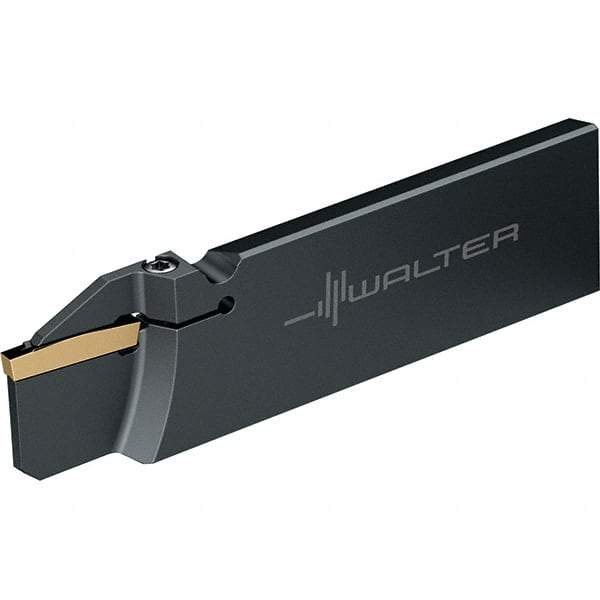

Walter - 1.2598" Blade Height, 4.3307" OAL, Right Hand Cut, Single End Indexable Cut-Off Blade - 23mm Max Depth of Cut, G1041 C Blade
Item #: 44858447
Brand: Walter
Model #: 5915465
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Single or Double End | Single |
| Cutting Direction | Right Hand |
| Blade Height (mm) | 32.00 |
| Blade Height (Decimal Inch) | 1.2598 |
| Blade Overall Length (mm) | 110.00 |
| Blade Overall Length (Decimal Inch) | 4.3307 |
| Blade Style | G1041 C |
| Insert Style | GX24-2E3/F3.. |
| Insert Width (mm) | 3.00 |
| Insert Width (Decimal Inch) | 0.1181 |
| Tool Block/Toolholder Style | SBN |
| Insert Holding Method | Screw |
| Maximum Depth of Cut (mm) | 23.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.9055 |
| Cutting Height (mm) | 24.60 |
| Cutting Height (Decimal Inch) | 0.9685 |
| Insert Corner Radius (Decimal Inch) | 0.0626 |
| Complete Insert Compatibility | GX24-2E300N020-CE4; GX24-2E300N02-CE4; GX24-2E300N02-CF5; GX24-2E300N02-CF6; GX24-2E300N030-GD3; GX24-2E300N030-UA4; GX24-2E300N030-UF4; GX24-2E300N03-GD3; GX24-2E300N03-GD6; GX24-2E300N03-UD6; GX24-2E300N03-UF4; GX24-2E300N150-RD4; GX24-2E300N15-RD4 |
| Complete Tool Block/Toolholder Style Compatibility | SBN12-26K-E; SBN12-26KS-E; SBN16-32-K-E; SBN16-32KS-E; SBN2020-26-K; SBN20-32K-E; SBN20-32KS-E; SBN20-46K-E; SBN2520-32-K; SBN3229-32-K; SBN3229-46-K; SBN4037-46-K |
| Includes | Clamping Screw FS2164; Screwdriver FS1485 |
