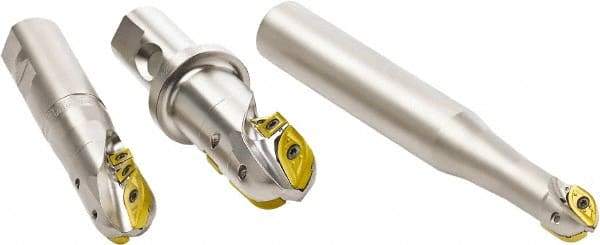

Seco - 16mm Cut Diam, 14mm Max Depth of Cut, 20mm Shank Diam, 4.724" OAL, Indexable Ball Nose End Mill - Straight Shank, R218.20 Toolholder, 218.20 080 Insert
Item #: 44856185
Brand: Seco
Model #: 65037
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 16.00 |
| Cutting Diameter (Decimal Inch) | 0.6299 |
| Maximum Depth of Cut (mm) | 14.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5512 |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Number of Ball Nose Inserts Used on Toolholder | 2 |
| Insert Style | 218.20 080 |
| Toolholder Style | R218.20 |
| Overall Length (Decimal Inch) | 4.7240 |
| Insert Holding Method | Screw |
| Through Coolant | Through Coolant |
| Weldon Flat | No |
| Tapered Neck | No |
| Number of Flutes | 2 |
| Maximum RPM | 28500 |
