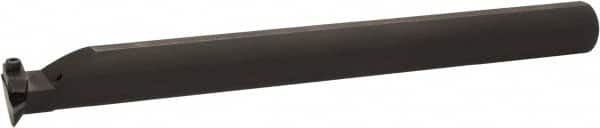

Hertel - VPGR.33., -5° Lead Angle A-IVLC Internal Right Hand Indexable Profiling Toolholder - 1-1/4" Shank Width, 14" Long, Steel, Through Coolant
Item #: 44659324
Brand: Hertel
Exact Tooling IR#: 04
Features and Benefits
Steel is a commonly used material as an econmical alternative for short-run jobs and its ability to be altered for a specific task.
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Hand of Holder | Right Hand |
| Rake | Neutral |
| Insert Compatibility | VPGR.33. |
| Toolholder Style | A-IVLC |
| Series | HertelNotch |
| Toolholder Material | Steel |
| Through Coolant | Yes |
| Shank Width/Diameter (Decimal Inch) | 1.2500 |
| Overall Length (Inch) | 14 |
| Overall Length (Decimal Inch) | 14.0000 |
| Insert Holding Method | Clamp |
| Lead Angle | -5 |
| Minimum Hole Diameter (Decimal Inch) | 1.8300 |
| Center to Cutting Edge (Decimal Inch) | 1.1250 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
