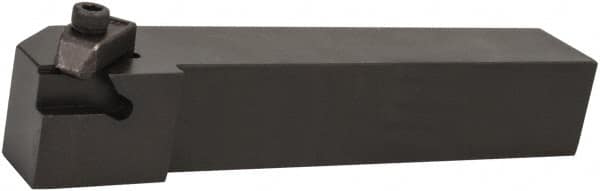

Hertel - IS, External, Right Hand, 1" Max Depth of Cut, 1" Min Groove Width, Indexable Grooving Tool Holder - IA.4R Insert Compatibility, 1-1/4" Shank Height, 1-1/4" Shank Width, 6" OAL
Item #: 44631380
Brand: Hertel
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Inch) | 1 |
| Maximum Depth of Cut (Decimal Inch) | 0.2900 |
| Minimum Groove Width (Decimal Inch) | 1.0000 |
| Overall Length (Decimal Inch) | 6.0000 |
| Toolholder Style | IS |
| Insert Compatibility | IA.4R |
| Shank Height (Decimal Inch) | 1.2500 |
| Shank Width/Diameter (Decimal Inch) | 1.2500 |
| Series | HertelNotch |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Threading |
| Insert Holding Method | Clamp |
| Insert Seat Size | 4 |
| Number of Inserts Used on Toolholder | 1 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.5000 |
| Toolholder Material | Steel |
