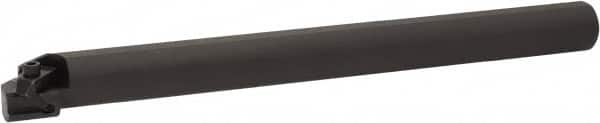

Hertel - A-IS, Internal, Right Hand, 1" Max Depth of Cut, 1" Min Groove Width, Indexable Grooving Tool Holder - I.3R Insert Compatibility, 1" Shank Width, 12" OAL, Through Coolant
Item #: 44602316
Brand: Hertel
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.0000 |
| Minimum Groove Width (Decimal Inch) | 1.0000 |
| Overall Length (Inch) | 12 |
| Overall Length (Decimal Inch) | 12.0000 |
| Toolholder Style | A-IS |
| Insert Compatibility | I.3R |
| Shank Width/Diameter (Inch) | 1 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Series | HertelNotch |
| Through Coolant | Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Threading |
| Insert Holding Method | Clamp |
| Insert Seat Size | 3 |
| Number of Inserts Used on Toolholder | 1 |
| Minimum Hole Diameter (Decimal Inch) | 2.2500 |
| Center to Cutting Edge (Decimal Inch) | 0.6400 |
| Toolholder Material | Steel |
