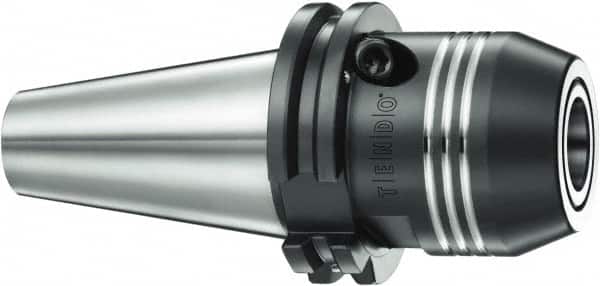

Schunk - CAT40 Taper Shank, 3/4" Hole Diam, Hydraulic Tool Holder/Chuck - 49.25mm Nose Diam, 64.5mm Projection, 42mm Clamp Depth, 15,000 RPM, Through Coolant
Item #: 44462877
Brand: Schunk
Model #: 206466
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | CAT40 |
| Hole Diameter (Inch) | 3/4 |
| Hole Diameter (Decimal Inch) | 0.7500 |
| Hole Diameter (mm) | 19.05 |
| Nose Diameter (Decimal Inch) | 1.9390 |
| Nose Diameter (mm) | 49.25 |
| Projection (Decimal Inch) | 2.5000 |
| Projection (mm) | 64.50 |
| Through Coolant | Yes |
| Clamping Depth (mm) | 42.00 |
| Balanced to (RPM) | 15000 |
| TIR (mm) | 0.003 |
