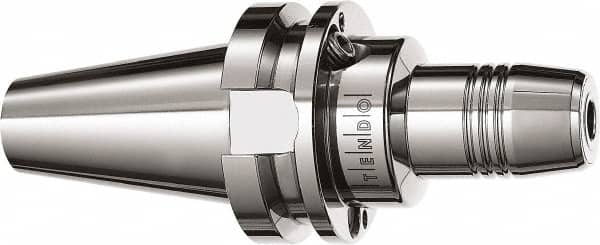

Schunk - BT40 Taper Shank, 1/4" Hole Diam, Hydraulic Tool Holder/Chuck - 26mm Nose Diam, 90mm Projection, 24.1mm Clamp Depth, 25,000 RPM, Through Coolant
Item #: 44462638
Brand: Schunk
Model #: 205140
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | BT40 |
| Hole Diameter (Inch) | 1/4 |
| Hole Diameter (Decimal Inch) | 0.2500 |
| Hole Diameter (mm) | 6.35 |
| Nose Diameter (Decimal Inch) | 1.0236 |
| Nose Diameter (mm) | 26.00 |
| Projection (Decimal Inch) | 3.5000 |
| Projection (mm) | 90.00 |
| Through Coolant | Yes |
| Clamping Depth (mm) | 24.10 |
| Balanced to (RPM) | 25000 |
| TIR (mm) | 0.003 |
