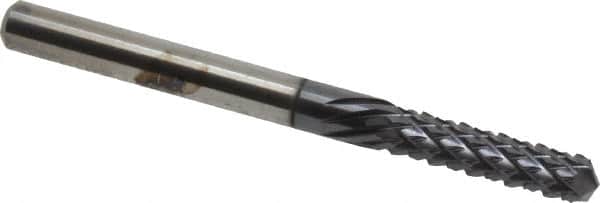

Onsrud - 1/8" Diam, 1/2" LOC, Drill Point End, Solid Carbide Diamond Pattern Router Bit - Right Hand Cut, 1-1/2" OAL, 1/8" Shank Diam, Use on Composites
Item #: 44192409
Brand: Onsrud
Model #: 66-904ALTIN
Exact Tooling IR#: 04
Features and Benefits
Drill point ends are ideal for producing clean cuts in aggresive milling applications. Some drill point bits are made of composite material for increased tool performance.
Solid carbide is used for high performace applications. It is extremely heat resistant and used on cast iron, non-ferrous metals and other tough to machine materials.
Aluminum titanium nitride (AlTiN) is one of the most abrasive resistant and hardest of the coatings. It is commonly used for machining aircraft and aerospace material, nickel alloy, stainless steel, titanium, cast iron and carbon steel.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 3.18 |
| Cutting Diameter (Inch) | 1/8 |
| Cutting Diameter (Decimal Inch) | 0.1250 |
| End Type | Drill Point |
| Length of Cut (Decimal Inch) | 0.5000 |
| Length of Cut (Inch) | 1/2 |
| Shank Diameter (mm) | 3.18 |
| Shank Diameter (Inch) | 1/8 |
| Overall Length (Inch) | 1-1/2 |
| Material | Solid Carbide |
| Finish/Coating | AlTiN |
| Material Application | Composites |
| Cutting Direction | Right Hand |
