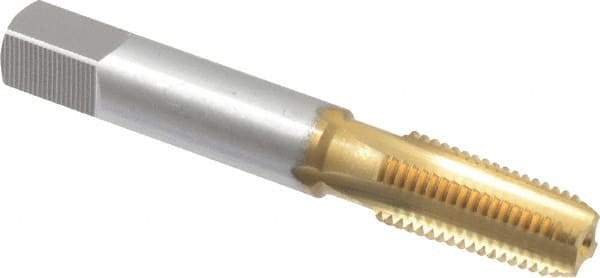

OSG - 1/16-27 NPT Thread, 4 Flute Standard Pipe Tap - 2-1/8" OAL, 11/16" Thread Length, 5/16" Shank Diam, TiN Finish, High Speed Steel
Item #: 44158020
Brand: OSG
Model #: 1310005
Exact Tooling IR#: 04
Features and Benefits
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Thread Size | 1/16-27 |
| Thread Standard | NPT |
| Material | High Speed Steel |
| Finish/Coating | TiN |
| Number of Flutes | 4 |
| Overall Length (Inch) | 2-1/8 |
| Hook | Regular |
| Projection (Decimal Inch) | 0.3120 |
| Thread Length (Inch) | 11/16 |
| Shank Diameter (Decimal Inch) | 0.3125 |
| Square Size (Decimal Inch) | 0.2340 |
| Series/List | 108 |
| Chamfer | 1 to 3-1/2 |
