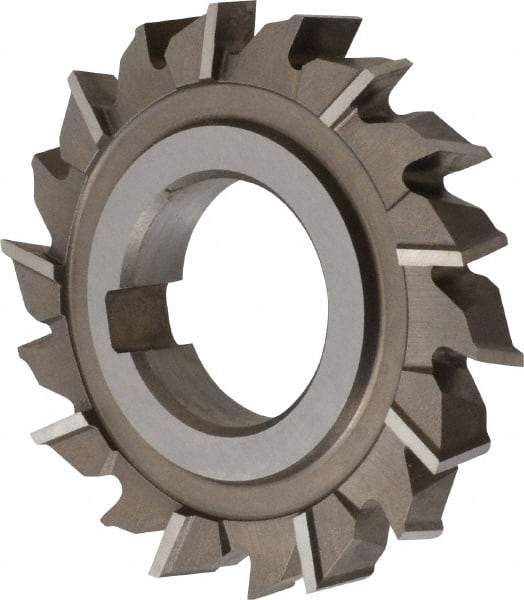

Keo - 3" Diam x 1/2" Width of Cut, 18 Teeth, High Speed Steel Side Milling Cutter - Staggered Teeth, Uncoated
Item #: 44096220
Brand: Keo
Model #: 00250
Exact Tooling IR#: 04
Features and Benefits
Staggered tooth cutters are used for deep slotting and heavy milling applications. They have fewer teeth than straight cutters for better chip removal from the workpiece.
High speed steel (HSS) provides good wear resistance. It is commonly used for general purpose applications on both ferrous and nonferrous materials.
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds for general applications on nonferrous metals.
| Product Specifications | |
|---|---|
| Cutter Diameter (Inch) | 3 |
| Cutting Width (Inch) | 1/2 |
| Cutting Width (Decimal Inch) | 0.5000 |
| Tooth Configuration | Staggered |
| Material | High Speed Steel |
| Finish/Coating | Uncoated |
| Arbor Hole Diameter (Inch) | 1-1/4 |
| Number of Teeth | 18 |
| Material Application | Aluminum |
| Helix Angle | +10.00 |
| Radial Rake Angle | +10 |
