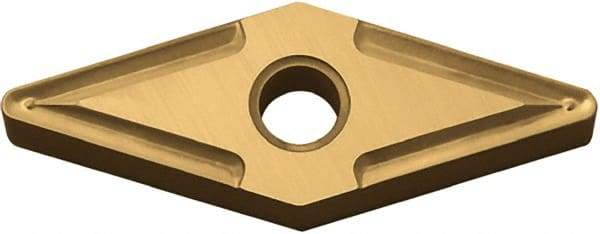

Kyocera - VNMG332 Grade CA5525 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 35° Diamond, 3/8" Inscr Circle, 3/16" Thick, 1/32" Corner Radius
Item #: 44081735
Brand: Kyocera
Model #: 8819899
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | VNMG |
| Insert Size | 332 |
| Material | Carbide |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Corner Radius (Inch) | 1/32 |
| Manufacturer's Grade | CA5525 |
| Coating | TiCN/Al2O3/TiN |
| Hole Diameter (Decimal Inch) | 0.1500 |
| ISO Number | VNMG160408 |
| Rake | Negative |
| Relief Angle | 0 |
| Coating Process | CVD |
| Primary Workpiece Material | P |
| Included Angle | 35 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CA5 |
| Insert Holding Method | Screw |
| Shape | Diamond |
