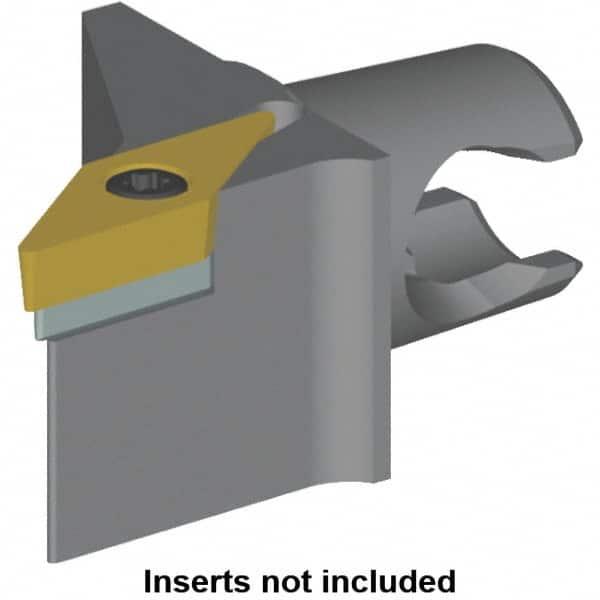

Kennametal - Right Hand Cut, Size KM25, VB.. Insert Compatiblity, Modular Turning & Profiling Cutting Unit Head - 16mm Ctr to Cutting Edge, 30mm Head Length, Series KM Mini
Item #: 43951656
Brand: Kennametal
Model #: 3365589
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | KM25 |
| Series Name | KM Mini |
| Cutting Direction | Right Hand |
| Head Length/Projection (mm) | 30.00 |
| Head Length/Projection (Decimal Inch) | 1.1811 |
| Insert Style | VB.. |
| Center to Cutting Edge (mm) | 16.00 |
| Center to Cutting Edge (Decimal Inch) | 0.6299 |
| Insert Holding Method | Screw |
| Through Coolant | NonThrough Coolant |
| Center to Cutting Height (mm) | 12.50 |
| Center to Cutting Height (Decimal Inch) | 0.4921 |
| Complete Insert Compatibility | VB..332; VB..160408 |
