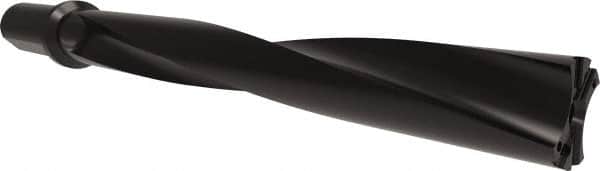

Allied Machine and Engineering - Series APX 51, 8xD, 50mm Shank Diam, Drill Body - 510.5mm Drill Body Length to Flange, W5108H Toolholder, 590.5mm OAL, 510.5mm Drill Body Length, Weldon Flat Shank, Through Coolant
Item #: 43941996
Brand: Allied Machine and Engineering
Model #: W5108H-50FM
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | APX 51 |
| Drill Depth by Diameter Ratio | 8xD |
| Shank Diameter (mm) | 50.00 |
| Shank Diameter (Decimal Inch) | 1.9685 |
| Drill Body Length to Flange (mm) | 510.50 |
| Drill Body Length to Flange (Decimal Inch) | 20.0984 |
| Toolholder Style | W5108H |
| Overall Length (mm) | 590.50 |
| Overall Length (Decimal Inch) | 23.2480 |
| Gage Length (mm) | 510.50 |
| Gage Length (Decimal Inch) | 20.0984 |
| Shank Type | Weldon Flat |
| Shank Length (mm) | 80.00 |
| Shank Length (Decimal Inch) | 3.1496 |
| Through Coolant | Through Coolant |
| Coolant Hole Thread Type | BSP |
| Coolant Hole Thread Size (Inch) | 1/4 |
