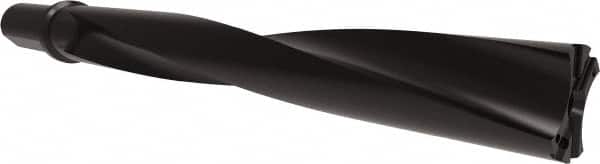

Allied Machine and Engineering - Series APX 57, 8xD, 2" Shank Diam, Drill Body - 21.9688" Drill Body Length to Flange, W5708H Toolholder, 26.4688" OAL, 21.9688" Drill Body Length, Weldon Flat Shank, Through Coolant
Item #: 43941848
Brand: Allied Machine and Engineering
Model #: W5708H-200F
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | APX 57 |
| Drill Depth by Diameter Ratio | 8xD |
| Shank Diameter (Inch) | 2 |
| Shank Diameter (Decimal Inch) | 2.0000 |
| Drill Body Length to Flange (Decimal Inch) | 21.9688 |
| Toolholder Style | W5708H |
| Overall Length (Decimal Inch) | 26.4688 |
| Gage Length (Decimal Inch) | 21.9688 |
| Shank Type | Weldon Flat |
| Shank Length (Decimal Inch) | 4.5000 |
| Through Coolant | Through Coolant |
| Coolant Hole Thread Size (Inch) | 1/4 |
