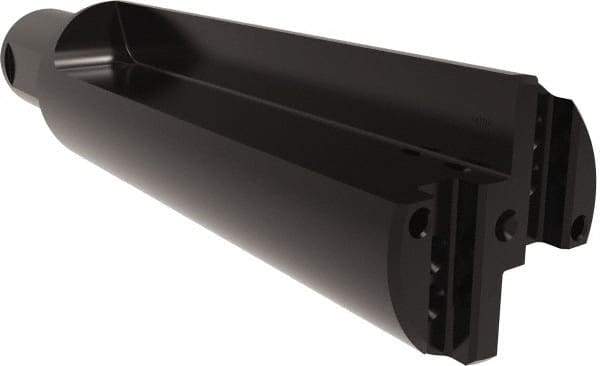

Allied Machine and Engineering - 4-3/4" Max Drill Depth, 63.5mm Diam, Indexable Insert Drill - 4 Inserts, 40mm Shank Diam, Straight Shank
Item #: 43939206
Brand: Allied Machine and Engineering
Model #: OP2-1S-40M
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | OP |
| Drill Diameter (mm) | 63.50 |
| Drill Diameter (Decimal Inch) | 2.5000 |
| Maximum Drill Depth (Inch) | 4-3/4 |
| Shank Type | Straight |
| Shank Diameter (mm) | 40.00 |
| Shank Diameter (Decimal Inch) | 1.5748 |
| Cutting Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Number of Drill Inserts | 4 |
| Maximum Drill Diameter (Decimal Inch) | 3.0000 |
| Maximum Drill Diameter (mm) | 76.20 |
| Overall Length/Projection (mm) | 209.70 |
| Overall Length/Projection (Decimal Inch) | 8.2559 |
| Insert Compatibility | OP-05T308-1H; OP-05T308-1P; OP-05T308-1T; OP-05T308-2H; OP-05T308-2P; OP-05T308-A; OP-05T308-H; OP-05T308-HHR; OP-05T308-N; OP-05T308-P; OP-05T308-PHR; OP-05T308-T |
| Body Length (Decimal Inch) | 5.5000 |
| Body Length (mm) | 139.70 |
| Shank Length (mm) | 70.00 |
| Shank Length (Decimal Inch) | 2.7559 |
| Series | Opening Drill |
