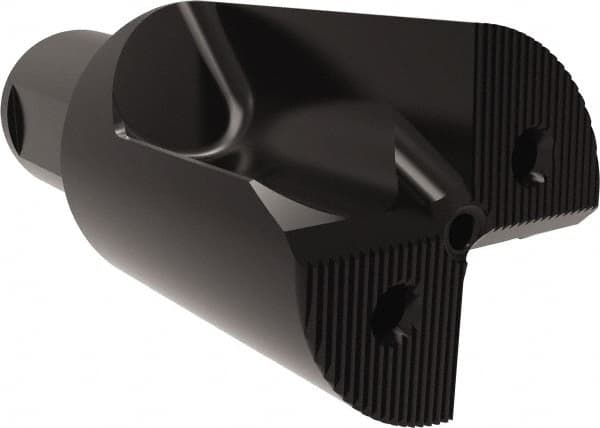

Allied Machine and Engineering - 82mm Max Drill Depth, 1xD, 76.2mm Diam, Indexable Insert Drill - 6 Inserts, 50mm Shank Diam, Straight Shank
Item #: 43935725
Brand: Allied Machine and Engineering
Model #: R48X10-50M
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | R |
| Drill Diameter (mm) | 76.20 |
| Drill Diameter (Decimal Inch) | 3.0000 |
| Maximum Drill Depth (mm) | 82.00 |
| Maximum Drill Depth (Decimal Inch) | 3.2284 |
| Shank Type | Straight |
| Shank Diameter (mm) | 50.00 |
| Shank Diameter (Decimal Inch) | 1.9685 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 1xD |
| Number of Drill Inserts | 6 |
| Maximum Drill Diameter (Decimal Inch) | 3.2000 |
| Maximum Drill Diameter (mm) | 81.28 |
| Overall Length/Projection (mm) | 194.30 |
| Overall Length/Projection (Decimal Inch) | 7.6496 |
| Insert Compatibility | OP-05T308-1H; OP-05T308-1P; OP-05T308-1T; OP-05T308-2H; OP-05T308-2P; OP-05T308-A; OP-05T308-H; OP-05T308-HHR; OP-05T308-N; OP-05T308-P; OP-05T308-PHR; OP-05T308-T |
| Body Length (Decimal Inch) | 4.5000 |
| Body Length (mm) | 114.30 |
| Shank Length (mm) | 80.00 |
| Shank Length (Decimal Inch) | 3.1496 |
| Series | Revolution Drill |
| Coolant Hole Thread Type | BSP |
| Shank End Coolant Hole Thread Size (Inch) | 1/4 |
