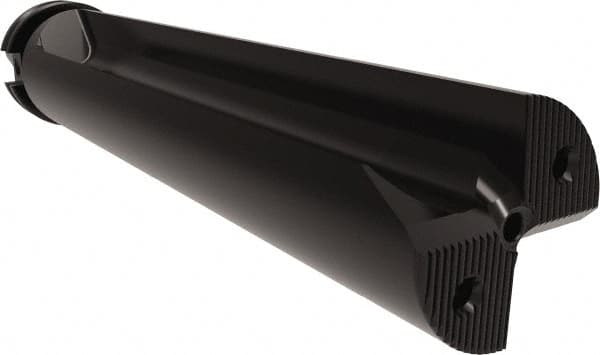

Allied Machine and Engineering - 9" Max Drill Depth, 4.5xD, 1-7/8" Diam, Indexable Insert Drill - 2 Inserts, CAT40 Taper Shank
Item #: 43935568
Brand: Allied Machine and Engineering
Model #: R34X45-CV40
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | R |
| Drill Diameter (Inch) | 1-7/8 |
| Drill Diameter (Decimal Inch) | 1.8750 |
| Maximum Drill Depth (Decimal Inch) | 9.0000 |
| Maximum Drill Depth (Inch) | 9 |
| Shank Type | Taper Shank |
| Taper Size | CAT40 |
| Cutting Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Drill Depth by Diameter Ratio | 4.5xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 2.0000 |
| Insert Compatibility | OP-05T308-1H; OP-05T308-1P; OP-05T308-1T; OP-05T308-2H; OP-05T308-2P; OP-05T308-A; OP-05T308-H; OP-05T308-HHR; OP-05T308-N; OP-05T308-P; OP-05T308-PHR; OP-05T308-T |
| Body Length (Decimal Inch) | 11.2500 |
| Series | Revolution Drill |
