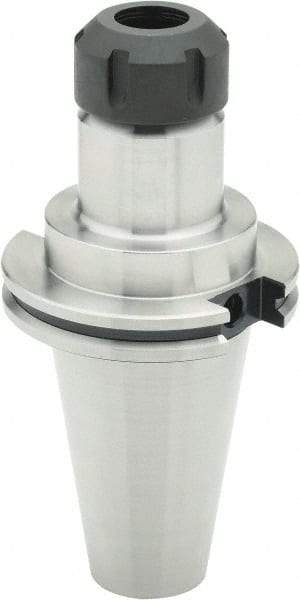

Parlec - 1mm to 16mm Capacity, 8.22" Projection, CAT50 Taper Shank, ER25 Collet Chuck - 12.22" OAL
Item #: 43907112
Brand: Parlec
Model #: C50-25ERC822
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER25 |
| Shank Type | Taper Shank |
| Taper Size | CAT50 |
| Projection (Decimal Inch) | 8.2200 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0394 |
| Minimum Collet Capacity (mm) | 1.00 |
| Maximum Collet Capacity (mm) | 16.00 |
| Maximum Collet Capacity (Decimal Inch) | 0.6299 |
| Overall Length (Decimal Inch) | 12.2200 |
| Actuator Type | Wrench |
| Type | ER Coolant Collet |
| Nose Diameter (Decimal Inch) | 1.6700 |
| PSC Code | 5136 |
| Balanced to (RPM) | 20000 |
| TIR (Decimal Inch) | 0.0002 |
| Coolant Type | Through-Spindle |
| Collet Nut Diameter (Decimal Inch) | 1.6700 |
