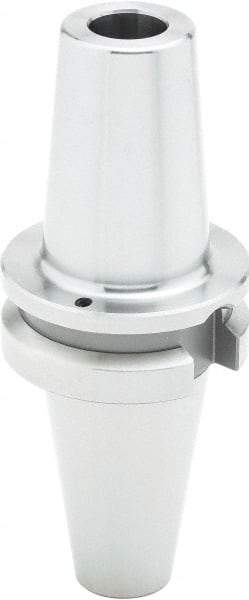

Parlec - 7/8" Hole Diam, BT40 Taper Shank Shrink Fit Tool Holder & Adapter - 3.54" Projection, 1.3" Nose Diam, 2.04" Clamping Depth, 20,000 RPM, Through Coolant
Item #: 43905967
Brand: Parlec
Model #: BT40-88SF354-9
Exact Tooling IR#: 04
Features and Benefits
Taper shanks are held in the machine spindle or in a toolholder clamping system.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | BT40 |
| Hole Diameter (Decimal Inch) | 0.8750 |
| Hole Diameter (Inch) | 7/8 |
| Projection (Decimal Inch) | 3.5400 |
| Nose Diameter (Decimal Inch) | 1.3000 |
| Through Coolant | Through Coolant |
| Clamping Depth (Decimal Inch) | 2.0400 |
| Overall Length (Decimal Inch) | 6.1150 |
| Balanced to (RPM) | 20000 |
