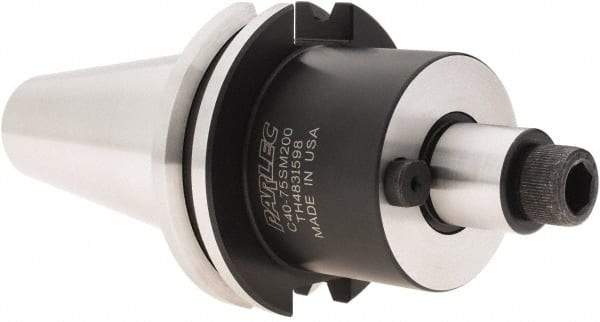

Parlec - CAT40 Taper Shank 3/4" Pilot Diam Shell Mill Holder - 2" Flange to Nose End Projection, 1-3/4" Nose Diam, Through-Spindle Coolant
Item #: 43905793
Brand: Parlec
Model #: C40-75SM200
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | CAT40 |
| Pilot Diameter (Inch) | 3/4 |
| Pilot Diameter (Decimal Inch) | 0.7500 |
| Projection Flange to Nose End (Decimal Inch) | 2.0000 |
| Through Coolant | Yes |
| Nose Diameter (Decimal Inch) | 1.7500 |
| Overall Length (Decimal Inch) | 4.6900 |
| Balanced to (RPM) | 20000 |
| TIR (Decimal Inch) | 0.0002 |
| Coolant Type | Through-Spindle |
