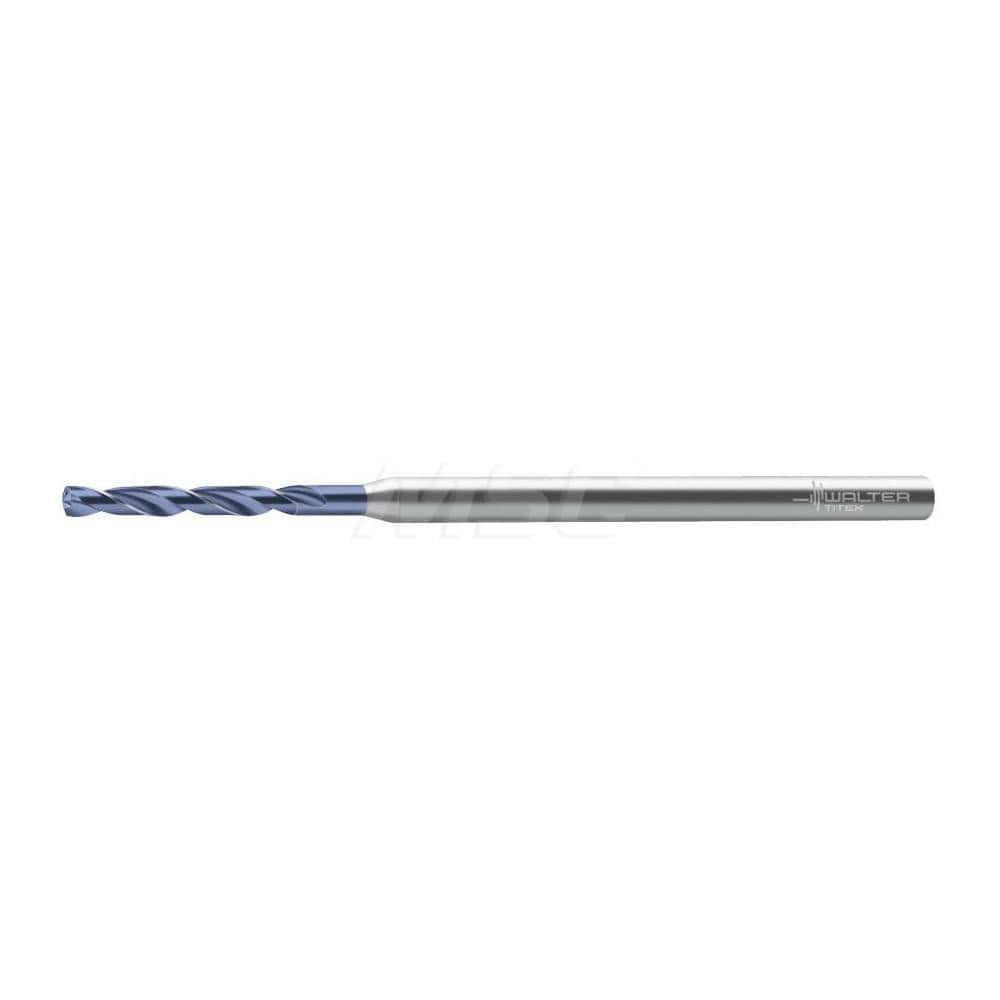

Micro Drill Bit: 0.1122″ Dia, 140 °, Solid Carbide AlTiN Finish, RH Cut, Spiral Flute, Straight-Cylindrical Shank, Series A3389AML
Item #: 43902535
Brand: Walter-Titex
Model #: 5932114
Product Specifications
| Drill Bit Size (mm) | 2.85 |
| Drill Bit Size (Decimal Inch) | 0.1122 |
| Tool Material | Solid Carbide |
| Flute Length (mm) | 25.00 |
| Coating/Finish | AlTiN |
| Coolant Through | Yes |
| Drill Point Angle | 140 |
| Cutting Direction | Right Hand |
| Maximum Drilling Depth (mm) | 20.00 |
| Series | A3389AML |
| Overall Length (mm) | 62.00 |
| Flute Type | Spiral |
| Shank Type | Straight-Cylindrical |
| Point Type | X-treme M |
| Tool Application | Through Hole Drilling; Blind Hole; Stack Drilling |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance | m7 |
| Primary Workpiece Material | Titanium Alloy |
| Primary Workpiece Material Code | P; S; K; M; N |
| Secondary Workpiece Material | Glass; Graphite |
| Secondary Workpiece Material Code | H; O |
| Standards | DIN 6535 HA |
| Shank Diameter (mm) | 3.00 |
| Shank Length (mm) | 34.00 |
| Flute By Diameter Ratio | 5xD |
| Material Grade | K30F |
| Spiral Type | Regular |
| Specification Number | DIN 6535HA |
