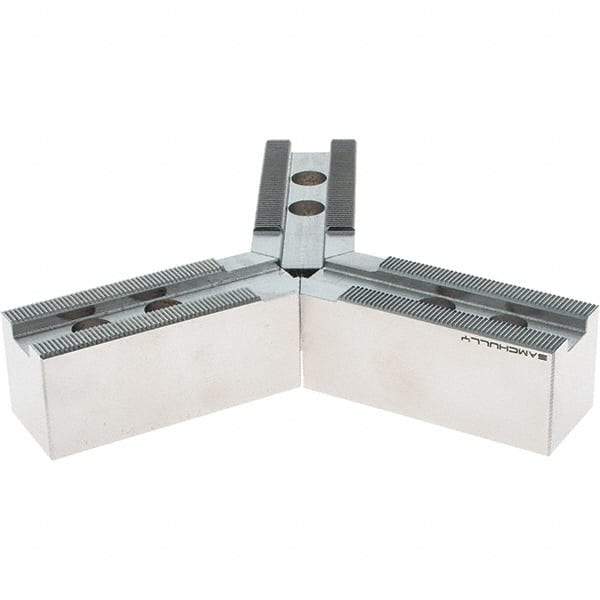

Samchully - 210mm Max Chuck Capacity, 1.5mm x 60° Serrated Interface, Round Soft Lathe Chuck Jaw - 3 Jaw, Steel, 25mm Btw Mount Hole Ctrs, 95mm Long, 35mm Wide, 38mm High, 14mm Groove, M12mm Fastener
Item #: 43801372
Brand: Samchully
Model #: SB08B1
Exact Tooling IR#: 04
Features and Benefits
Pointed jaws are blanks used for smaller part diameters, allowing closer contact than square end jaws.
| Product Specifications | |
|---|---|
| Jaw Type | Round |
| Material | Steel |
| Jaw Interface Type | 1.5mm x 60 Serrated |
| Maximum Compatible Chuck Diameter (mm) | 210.00 |
| Minimum Compatible Chuck Diameter (mm) | 210.00 |
| Overall Height (mm) | 38.00 |
| Groove Width (mm) | 14.00 |
| Distance Between Mount Hole Centers (mm) | 25.00 |
| Jaw End Shape | Pointed |
| Fastener Size (mm) | M12 |
| Number of Jaws | 3 |
| Overall Width/Diameter (mm) | 35.00 |
| Overall Length (mm) | 95.00 |
| Maximum External Chucking Diameter (mm) | 210.00 |
| Minimum External Chucking Diameter (mm) | 13.00 |
