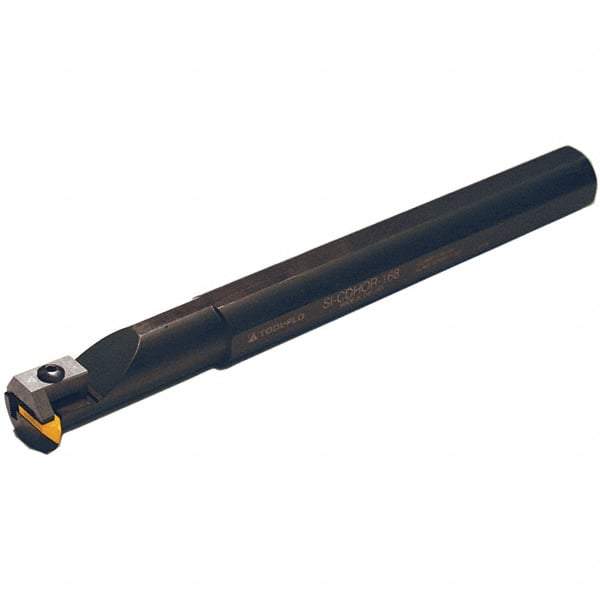

Tool-Flo - SI-CDHOR, Internal, Right Hand, 0.325" Max Depth of Cut, Indexable Grooving Tool Holder - V98 Insert Compatibility, 2" Shank Width, 16" OAL
Item #: 43765221
Brand: Tool-Flo
Model #: 96803286
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3250 |
| Overall Length (Inch) | 16 |
| Overall Length (Decimal Inch) | 16.0000 |
| Toolholder Style | SI-CDHOR |
| Insert Compatibility | V98 |
| Shank Width/Diameter (Inch) | 2 |
| Shank Width/Diameter (Decimal Inch) | 2.0000 |
| Series | Vee Bottom |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Threading |
| Insert Holding Method | Clamp |
| Maximum Bore Depth (Decimal Inch) | 0.3120 |
| Center to Cutting Edge (Decimal Inch) | 1.5300 |
| Manufacturers Catalog Number | SI-CDHOR-329 |
| Complete Insert Compatibility | V98 NGC W.500 |
| Minimum Bore Diameter (Decimal Inch) | 3.1000 |
| Shank Diameter (Decimal Inch) | 2.0000 |
