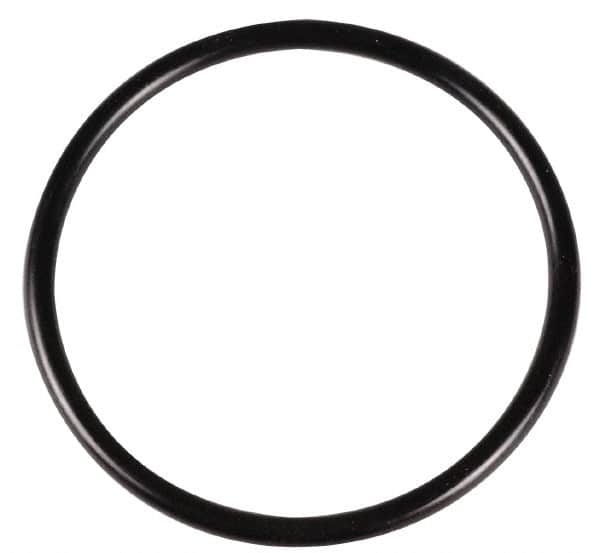

Value Collection - 6-1/4" ID x 6-7/16" OD, Fluorosilicone O-Ring - 3/32" Thick, Round Cross Section
Item #: 43761576
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Round cross-section shapes can be used in both static and dynamic applications. They are used as a mechanical seal or gasket and are seated in a groove and compressed during assembly between two or more parts.
Fluorosilicone is a blend of silicone and fluorocarbon. It offers good resistance to oils and solvents as well as resistant to extreme temperatures.
| Product Specifications | |
|---|---|
| Cross Section Shape | Round |
| Material | Fluorosilicone |
| Dash Number | 164 |
| System of Measurement | Inch |
| Durometer (Shore A) | 70 |
| Inside Diameter (Inch) | 6-1/4 |
| Inside Diameter (Decimal Inch) | 6.2370 |
| Outside Diameter (Inch) | 6-7/16 |
| Outside Diameter (Decimal Inch) | 6.4380 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.1030 |
| Maximum Temperature (F) | 400.000 |
| Minimum Temperature (F) | -80.000 |
| Additional Information | MIL-R-25988 TY 1 CL 1 Compliant |
