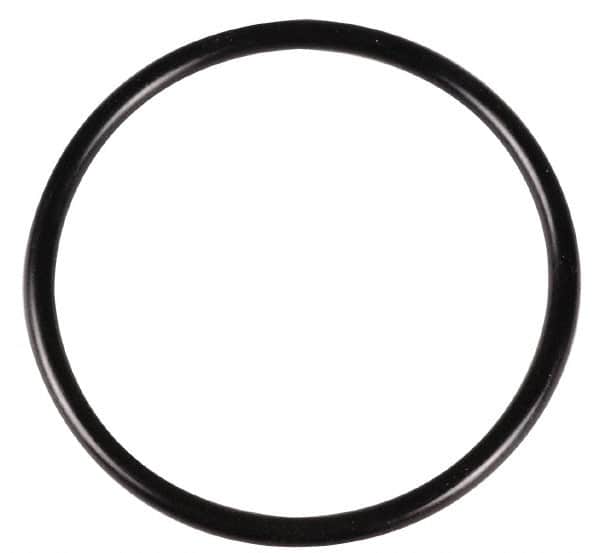

Value Collection - 1-1/2" ID x 1-3/4" OD, Fluorosilicone O-Ring - 1/8" Thick, Round Cross Section
Item #: 43761428
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Round cross-section shapes can be used in both static and dynamic applications. They are used as a mechanical seal or gasket and are seated in a groove and compressed during assembly between two or more parts.
Fluorosilicone is a blend of silicone and fluorocarbon. It offers good resistance to oils and solvents as well as resistant to extreme temperatures.
| Product Specifications | |
|---|---|
| Cross Section Shape | Round |
| Material | Fluorosilicone |
| Dash Number | 222 |
| System of Measurement | Inch |
| Durometer (Shore A) | 70 |
| Inside Diameter (Inch) | 1-1/2 |
| Inside Diameter (Decimal Inch) | 1.4840 |
| Outside Diameter (Inch) | 1-3/4 |
| Outside Diameter (Decimal Inch) | 1.7500 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1390 |
| Maximum Temperature (F) | 400.000 |
| Minimum Temperature (F) | -80.000 |
| Additional Information | MIL-R-25988 TY 1 CL 1 Compliant |
